Bucket Seat vs Bench Seat Pedestal Differences

by George Nenadovich

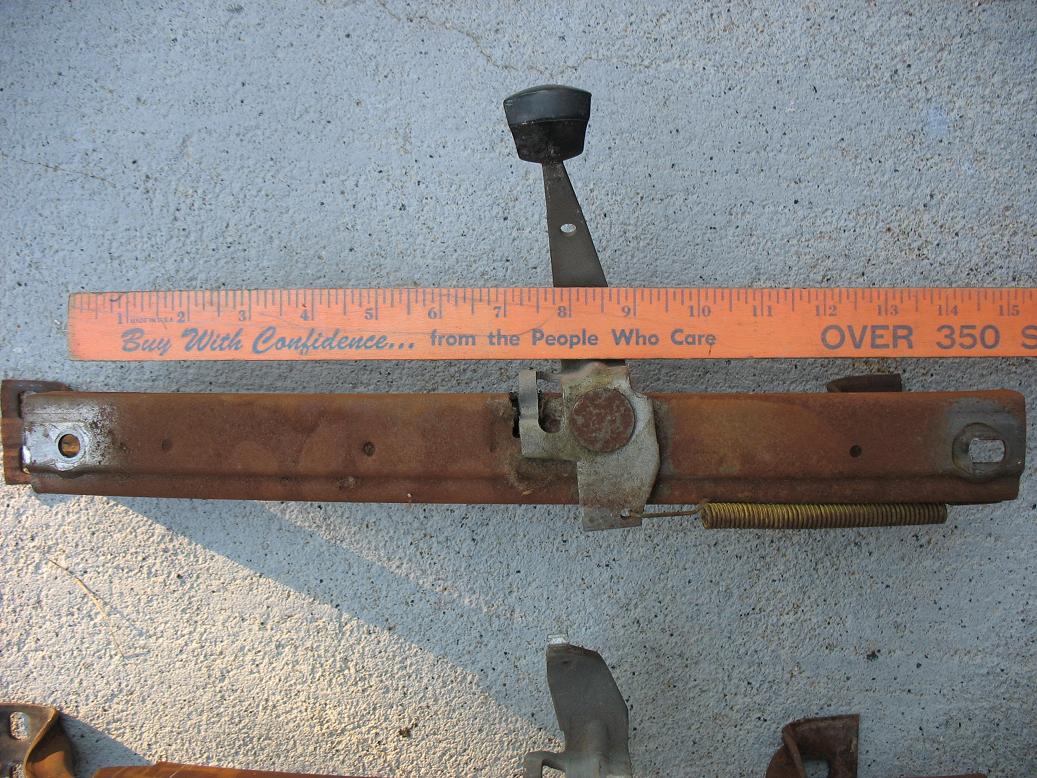

Notice pedestal on top is from a bucket seat....lower from a bench seat....they can not be interchanged.



Dimension between mounting holes is 14.25 inches for the bucket seat pedestal.




Bench seat pedestal measure 12.5 inches between mounting holes.

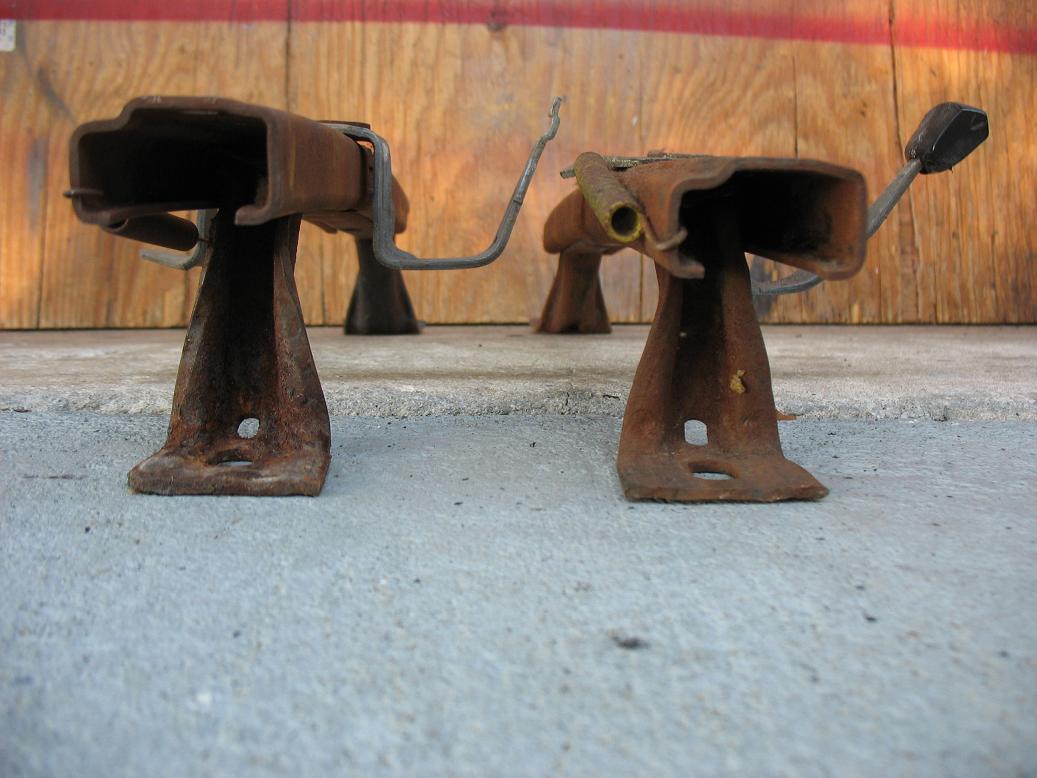

Notice height difference...bench seat pedestal on the left is about 7/8 of inch taller.



Notice profile/angle of seat track release...the bucket seat version on the right has a longer release arm and lower angle to clear

the bucket seat skirts.
